X-Card Marking System

X-Card marking machine

Overview

  • On-site marking system for cables, wires, control panels and components using the PC controlled X-Card marker printer.
  • NEW! Fast, clean, thermal transfer printing in monochrome or colour.
  • Prints onto Partex PFC cards in credit card format with easy detachable marker tags for various holder systems and direct marking applications.
  • A user friendly compact system with high production capacity.
  • The X-Card system considerably reduces the total marking costs.
X-Card Printer
PARTEX PART NUMBER DESCRIPTION
MK3 - P330 - CE - KIT1 X-Card Kit. Consists of MK3 printer, Winsign NG software, power and data cables, cleaning kit and F301 black ribbon.
MK3 - F301E Printer ribbon F301 black. For optimum print quality on PFC cards.
MK3 - RC330 Printer ribbon RC330 colour. Full colour printing YMCKO ribbon.
MK3 - CLEANKIT - P330 Cleaning kit for MK3. Includes swab, cleaning cards and roller.
MK3 - CR Cleaning roller for MK3. Removes dust from the card before printing.

Specification
PRINTER TECHNOLOGY: Thermal transfer with recommended printing ribbon.
RESOLUTION: 300 dpi.
SPEED: 4 seconds per card for resin black.
25 seconds per card full colour single sided.
COMMUNICATION INTERFACE: USB 1.1 cable included.
OPERATING TEMPERATURE: 15°C to 70°C.
OPERATING HUMIDITY: 20% to 65% non-condensing.
STORAGE TEMPERATURE: -5°C to +70°C.
DIMENSIONS: 462 x 239 x 256mm (L x W x H).
SOFTWARE: Winsign NG.
WEIGHT: 7.0 Kg.
POWER CONNECTION: 110 VAC - 240 VAC, 50 - 60 Hz.
FCC Class B, CE, UL and CUL approved.
RIBBON: Monochrome 1500 (black), YMCKO (colour).

X-card markers Sleeve with tag on wire

PFC Marker Tags

  • Credit card format, individually cut tags for use with the X-Card Printer
  • Tags can be used with the PT+ holder system for wire marking.
  • PFC tags can be mounted using PS transparent holders and the unique rail system for control panel and component marking.
  • Larger cables and pipes can be marked in conjunction with PM holders, which are fastened in place using cable ties.
  • Additional project information can be marked directly onto the card.
  • The injection moulded cards can be used as a mounting tool.
  • Available in white or yellow.
PFC Marker Tags
PARTEX PART NUMBER DESCRIPTION TAG SIZE (L x H) mm QTY PER CARD QTY PER BOX FOR USE WITH
PFC 04212 Marker tag for wire marking 12 x 4.2 21 525 PT+, PTZ+, PM
PFC 04215 Marker tag for wire marking 15 x 4.2 21 525 PT+, PTZ+, PM
PFC 04218 Marker tag for wire marking 18 x 4.2 21 525 PT+, PTZ+, PM
PFC 04221 Marker tag for wire marking 21 x 4.2 21 525 PT+, PTZ+, PM
PFC 07533 Marker tag for cable marking 33 x 7.5 9 225 PTZ+
PFC 09518 Marker tag for component/cable marking 18 x 9.5 20 500 PM, PS
PFC 09540 Marker tag for component marking 40 x 9.5 8 200 Cable tie mounting
PFC 09580 Marker tag for component marking 80 x 9.5 4 100 Cable tie mounting
PFC 07014 Marker tag for component/terminal marking 14 x 7.0 25 625 Direct mounting
PFC 12726 Marker tag for component/terminal marking 12.7 x 25.4 9 225 Direct mounting
PFC 45080 Marker tag for component/terminal marking 45 x 80 1 80 Direct mounting
PFC 15027 Push button tag for holder 15 x 27 9 225 Direct mounting

Application

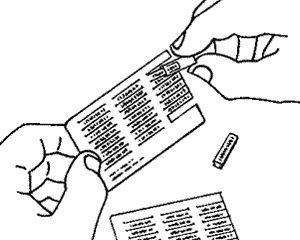

Application of PFC markers
