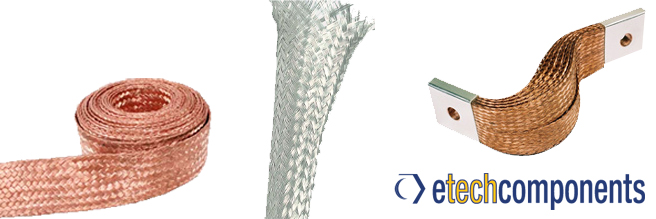

Copper Braid, Steel Braid, Aluminium Braid
Our range of
copper braid products includes:
*
Rope braids: Stranded Round,
With Overall Braid. With Strain Relief and Woven Flat.
* Round Braids: Flexible round, square and rectangular.
*
Braided copper: Flat rolled,
flexible and super flexible.
*
Shielding braids
*
Earth straps
*
Earth bonding leads
*
Flexible copper connectors
All of these braided products are available in the following
finishes:
* Bare copper / Plain copper
* Electro tinned copper
* Nickel tinned copper
* 99.99% pure Silver plate
* And other finishes on request.
Even though many of our products are standard items, we also
make special tailor made products made exactly to the
requirements of our customers. Do please contact us if you have
specific requirements or cannot find the product you need on our
web site.
Call us now on +44 (0)151 547 2666 Alternatively fax your
requirements to +44 (0)151 547 1444 or email
sales@etechcomponents.com
We use the finest quality material to ensure consistency of
quality and performance, drawing on our suppliers decades of
experience in drawing, stranding and braiding, as well as
surface treatment. Our Liverpool factory has skilled and
committed staff to ensure the products we supply to our
customers meet your requirements first time, every time.
Copper Braid Construction
The construction of
Copper braid is usually written
as: 48 / 30 / 0.15, where:
48 = the number of carriers
30 =the number of wires per carrier
0.15 = the diameter of each wire in mm
The cross sectional area (CSA) of a copper braid can be
calculated from this information:
carriers x wires per carrier x wire diameter ˛ x 3.142
4
So, for a copper braid with the specification: 48 / 30 / 0.15,
this would be:
48 x 30 x 0.15˛ x 3.142 = 101.80
4
=25.45 mm˛ |
