Unifix IM (Cable
Blocks)
Unifix IM
12-32 (Cable Blocks)
Applications:
For mounting four single- or multi-conductor cables or
any multiple thereof.
Low, medium and high voltage cables with diameters of 12
- 48 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· The mounting holes are Ø13 mm, allowing the allthread
to be extended with threaded bushes at any desired
location, thereby eliminating the possibility of damage
when cables are installed in multiple layers. The
existing configuration can be expanded at any time...
easily, simply and at little cost.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 29,500 Nm.
· Stackable.
· Dovetail connections for end-to-end attachment.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).

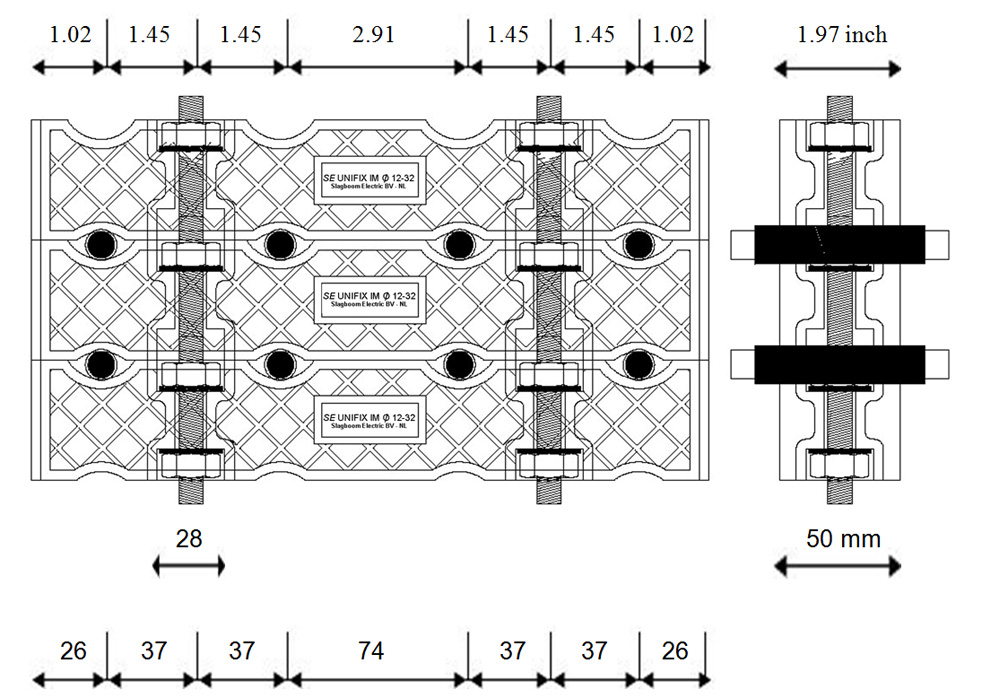

Dimension diagram:
|
1 layer of cable
|
(2 pieces) for
installation of 4 cables of 12 - 32 mm diameter
|
|
2 layers of cable
|
(3 pieces) for
installation of 8 cables of 12 - 32 mm diameter
|
|
3 layers of cable
|
(4 pieces) for
installation of 12 cables of 12 - 32 mm diameter
|
|
4 layers of cable
|
(5 pieces) for
installation of 16 cables of 12 - 32 mm diameter
|
|
5 layers of cable
|
(6 pieces) for
installation of 20 cables of 12 - 32 mm diameter
|
 |
Unifix IM
12-48 (Cable Blocks)
Applications:
For mounting four single- or multi-conductor cables or
any multiple thereof.
Low, medium and high voltage cables with diameters of 12
- 48 mm as well as conduits and hoses.
Characteristics:
· Made of glass fibre reinforced polyamide (PA).
· Resistant to oils, UV, ozone, salts, moisture, acids
and even radioactive emissions.
· Self-extinguishing V-0 (UL94), halogen-free, low
smoke.
· The mounting holes are Ø13 mm, allowing the allthread
to be extended with threaded bushes at any desired
location, thereby eliminating the possibility of damage
when cables are installed in multiple layers. The
existing configuration can be expanded at any time...
easily, simply and at little cost.
· Temperature range from -40 °C to 120 °C.
· Mechanical strength: 29,500 Nm.
· Stackable.
· Dovetail connections for end-to-end attachment.
· Black coloured.
· Available pre-mounted.
· Fasteners meeting your specifications can be included.
Testing:
By UL, KEMA, Eaton and Centrilab
(reports available upon request).
Dimension diagram:
|
1 layer of cable
|
(2 pieces) for
installation of 4 cables of 12 - 48 mm diameter
|
|
2 layers of cable
|
(3 pieces) for
installation of 8 cables of 12 - 48 mm diameter
|
|
3 layers of cable
|
(4 pieces) for
installation of 12 cables of 12 - 48 mm diameter
|
|
4 layers of cable
|
(5 pieces) for
installation of 16 cables of 12 - 48 mm diameter
|
|
5 layers of cable
|
(6 pieces) for
installation of 20 cables of 12 - 48 mm diameter
|
|
|
