The PAZ Chevron Cut Wire Marker

Overview

  • Single character halogen-free marker sleeve for unconnected wires and cables.
  • Designed for electrical, pneumatic, hydraulic etc. applications.
  • Unique profile with spring-action bellows covers a wide variety of diameters with a single marker size therefore reducing marker stock requirements.
  • Designed to interlock when fitted, enabling easy alignment of multiple character markings.
  • High environmental tolerance and excellent legibility.
PAZ Chevron Cut Wire Marker
PROFILE PARTEX PART
NUMBER
SIZE RANGE LENGTH
mm
PACKAGING
PAZ02 profile PAZ 02 Ø 1.7 - 2.8mm
0.5 - 0.75mm²
3mm 500 piece compactadisc
PAZ1 profile PAZ 1 Ø 2.5 - 5.0mm
0.75 - 4.0mm²
3mm 500 piece compactadisc
PAZ2 profile PAZ 2 Ø 4.0 - 10mm
2.5 - 16mm²
4mm 250 piece compactadisc

Specification
MATERIAL: Zerex, thermoplastic polyether based polyurethane mixture. The material is free from halogen, cadmium and silicon.
COLOURS: Black on white or black on yellow all ex-stock.
PRINT: High resolution etching inkjet.
TEMPERATURE: The shape is permanent between -30°C and +90°C.
PROPERTIES: Flammability resistance to UL94-V0, good resistance to chemicals, temperature and UV radiation.
STANDARD LEGENDS: 0-9, A-Z, +, -, /, earth, or blank. Special symbols available to order.
PAZ size diagram
Dimensions
PART HEIGHT (H) mm WIDTH (W) mm TEXT HEIGHT mm
PAZ02 3.6 3.5 2.6
PAZ1 5.5 4.2 2.6
PAZ2 9.5 6.6 4.0

Packaging

Compactadisc of PAZ markers
Compactadisc

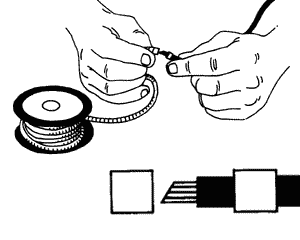

Application

Application of closed marker
