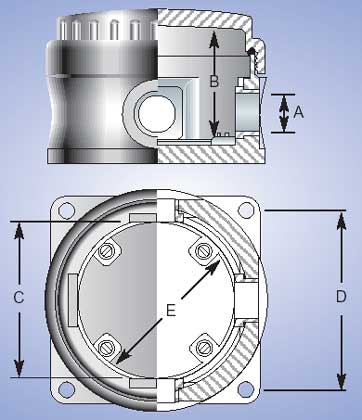

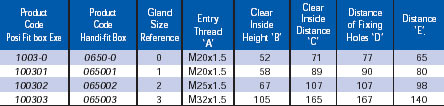

CCG 4 Way / Y Junction Box EExe, Exn, DIP, IP68 For use in hazardous areas and industrial electric installations.
Features and Benefits
For use in surface hazardous
areas and general industrial
electrical installations.
Manufactured from impact,
corrosion and UV resistant glass
reinforced polyester compound.
High temperature resistance
and anti-static properties
(black boxes only).
Red Fire Rated box for
emergency circuits (Rated 750ΊC
for 30 min.)

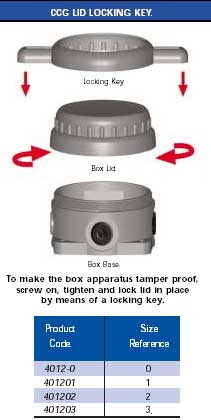

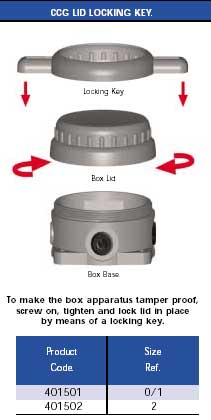

Screw-on lid allows ease of
installation locked with a
special key prevents
unauthorised tampering.
No exposed metal parts.
One box gives 1, 2, 3 and 4
way versatility (reduced stock
holding).
4 blanking plugs provided.
No drilling or tapping of
entries required.
CCG reserves the right to make
alterations to the technical
data, dimensions, designs and
products available without
notice. The illustrations cannot
be considered binding. Please
contact
us for assistance.
Download Data Seet

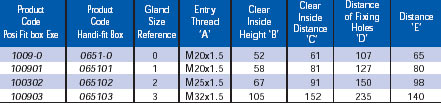

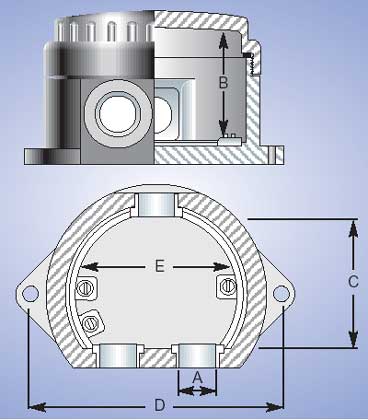

CCG Y Box IP68
Features and Benefits
Internal earth continuity ring
and earth studs provided.
DIN rail mounting studs are
provided for use with CCG
terminal blocks (see leaflet No.
T 010203).
Raised domed lid facilitates
connections to be made outside
of the box.
If boxes are used in hazardous
areas only approved Exe glands
and Exe non-sparking terminals
must be fitted.
Dust and water tight to IP68
when fitted with CCG sealed
glands.
Can be buried for extended
periods.
Boxes with see through
polycarbonate adapt-a lids
available on request.
4 way H-boxes with parallel
entries available on request.
CCG reserves the right to make
alterations to the technical
data, dimensions, designs and
products available without
notice. The illustrations cannot
be considered binding. Please
contact
us for assistance.
