CCG A2 Compression Cable Gland for Flexible Cable For indoor and outdoor use

Navigate to: CCG Home | CCG Industrial/Mining Cable Glands
CCG Unarmoured Cable Glands
CCG-A2-Compression-Cable-Gland-flexible-cable-indoor-outdoor

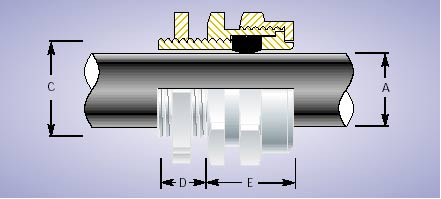

CCG A2 Compression Cable Gland for Flexible Cable - For indoor and outdoor use.

Features and Benefits
For indoor/outdoor use.
Seals on the cable sheath, to IP68 if fitted with a gasket.
Specially formulated elastomeric seals.
Wide sealing range
Precision manufactured from high quality brass and nickel plated.
Complete with high quality brass locknuts.
By removing the outer nut seal and bush the inners of sizes 1 to 3 can be used as metric
reducers.
Also available in aluminium on request.




CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

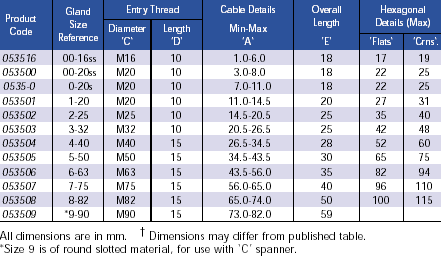

Technical Data
Type - A2
Gland Material - Brass (Nickel Plated), Aluminium
Seal Material - Thermoplastic Elastomer (Silicone on request)
Cable Type - Unarmoured
Sealing Area - Outer sheath
Optional Accessories - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
