CCG A2EX EExde IIC Compression Cable Gland for flexible cable For indoor / outdoor use and hazardous areas (A2 Type)

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC unarmoured
CCG A2EX EExde IIC Compression Cable Gland for flexible cable For indoor / outdoor use and hazardous areas (A2 Type)

CCG A2EX EExde IIC Compression Cable Gland for flexible cable For indoor / outdoor use and hazardous areas (A2 Type).

Features and Benefits

• For indoor/outdoor use and hazardous areas. (A2E Type)
• Fitted with two specially formulated elastomeric seals. Inner seal seals
on the cable sheath. Harder outer seal grips the cable, giving superior
cable retention and IP rating
• Manufactured from high quality brass and nickel plated.
• Supplied with a polypropylene sealing gasket.




CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

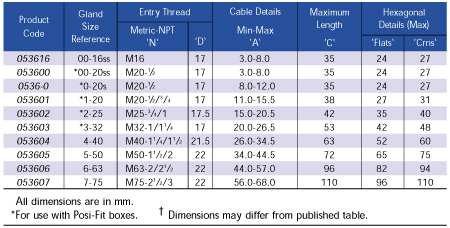

Technical Data
Type - A2EX
Gland Material - Brass (Nickel Plated), stainless steel and aluminium*
Seal Material - Thermoplastic Elastomer (Silicone on request)
Cable Type - Unarmoured
Sealing Area - Outer sheath
Optional Accessories - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
