CCG A2EX FHC EExde IIC Compression Gland for flexible cable housed in conduit For use indoors and hazardous areas

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC unarmoured
CCG-A2EX-FHC-EExde-IIC-Compression-Cable-Gland

CCG A2EX FHC EExde IIC Compression Gland for flexible cable housed in conduit For use indoors and hazardous areas.

Features and Benefits

For indoor/outdoor use and hazardous areas. (A2E Type)
For use with all types of unarmoured cable housed in rigid or flexible conduit.
Fitted with two specially formulated elastomeric seals. Inner seal seals on the cable sheath. Harder outer seal grips the cable, giving superior cable retention and IP rating
Fitted with a rotating female connection for connection to conduit.
Manufactured from high quality brass and nickel plated and stainless steel.
Supplied with a polypropylene sealing gasket.



CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

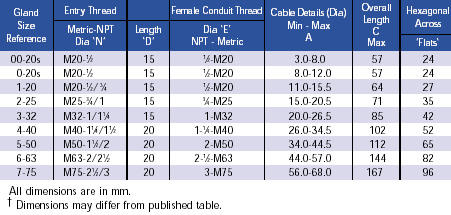

Technical Data
Type - A2EX FHC
Gland Material - Brass (Nickel Plated), Stainless Steel
Seal Material - Thermoplastic Elastomer (Silicone on request)
Cable Type - Unarmoured in Conduit
Sealing Area - Inner sheath
Optional Accessories and Tools - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
