CCG A2F EExde IIC Compression Gland for flexible cable For use indoors/outdoors and hazardous areas

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC unarmoured

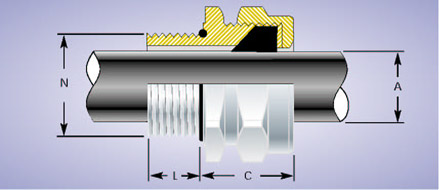

CCG-A2F-EExde-IIC-Compression-Cable-Gland

CCG A2F EExde IIC Compression Gland for flexible cable For use indoors/outdoors and hazardous areas.

Features and Benefits

For indoor/outdoor use and hazardous areas.
Fitted with specially formulated elastomeric displacement seal, giving superior cable retention, explosion protection and IP rating.
Manufactured from high quality brass and nickel plated.
Supplied with a polypropylene or neoprene sealing gasket.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

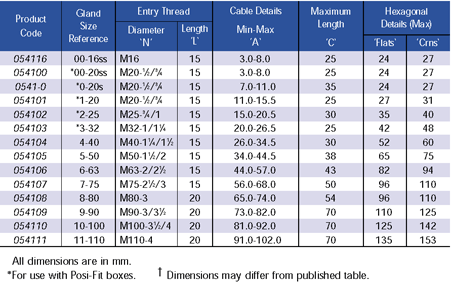

Technical Data
Type - A2F
Gland Material - Brass (Nickel Plated)
Seal Material - Thermoplastic Elastomer (Silicone on request)
Cable Type - Unarmoured
Sealing Area - Outer sheath
Optional Accessories and Tools - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
