CCG BarrierTex A, Barrier EEx d Cable Gland for elastometric single steel wire cable For use in potentially explosive atmospheres

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC armoured
CCG-BarrierTex-A-Barrier-EEx-d-Cable-Gland

CCG BarrierTex A, Barrier EEx d Cable Gland for elastometric single steel wire cable For use in potentially explosive atmospheres.

Features and Benefits

• Precision manufactured from high quality brass and nickel plated.
• Provides a barrier seal between the individual cores of the cable.
• Inspectable compound and flameproof chamber.
• Prevents explosive gasses propagating through a cable.
• Prevents gas and moisture migrating through a cable.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

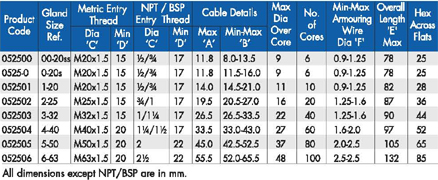

Technical Data
Type - BarrierTex A
Gland Material - Brass (Nickel Plated), Stainless Steel, Bronze
Seal Material - CCG FR308 or ST574 compound. Thermoplastic elastomer
Cable Type - Armoured cable
Armour Clamping - Captive Cone and Cone Ring
Sealing Area - Inner compound barrier and outer sheath

Download Data Sheet
