CCG CW Captive Component Cable Gland for Steel Wire Armoured cable For outdoor use

Navigate to: CCG Home | CCG Industrial/Mining Cable Glands
CCG Unarmoured Cable Glands
CCG-CW-Captive-Component-Cable-Gland-steel-Wire-Armoured-Cable

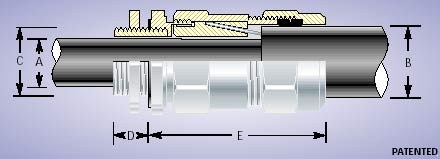

CCG CW Captive Component Cable Gland for Steel Wire Armoured cable For outdoor use

Features and Benefits
For outdoor use.
Two piece handling, no loose parts.
Freely rotating captive cone, providing an armour clamp and earth bond
without twisting the steel wire armouring.
Adjustable bush for use with thick gland plates.
By removing the outer body and bush the inner of sizes 1 to 3 can be
used as metric reducers.
Provides a seal on the outer sheath of the cable, sealing to IP66.
Precision manufactured from high quality brass and nickel plated.
Complete with high quality brass locknuts.
Also available in aluminium on request.




CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

Technical Data
Type - CW
Gland Material - Brass (Nickel Plated), Aluminium
Seal Material - Thermoplastic Elastomer
Cable Type - Steel Wire Armour / Aluminium Armour
Armour Clamping - Captive Rotating Cone
Sealing Area - Outer sheath
Optional Accessories - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
