CCG CW IE Integral Earth Cable Gland for Steel Wire Armoured Cable For indoor and outdoor use

Navigate to: CCG Home | CCG Industrial/Mining Cable Glands
CCG Unarmoured Cable Glands
CCG-CW-IE-Integral-Earth-Cable-Gland-Steel-Wire-Armoured-Cable

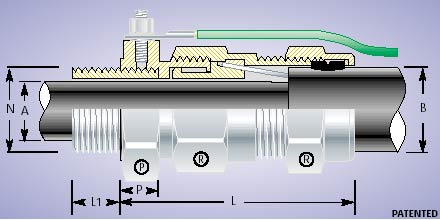

CCG CW IE Integral Earth Cable Gland for Steel Wire Armoured Cable
For indoor and outdoor use.

Features and Benefits

For HV system circuits for protection against fault currents.
For indoor and outdoor use.
Two piece handling, no loose parts.
Freely rotating captive cone, providing an armour clamp and earth bond
without twisting the steel wire armouring.
Adjustable bush for use with thick gland plates.
Provides a seal on the outer sheath of the cable, sealing to IP66.
Precision manufactured from high quality brass and nickel plated.
Complete with high quality brass locknuts, earthing stud and bolt.

CCG-CW-IE-Integral-Earth-Cable-Gland-Steel-Wire-Armoured-Cable
CCG-CW-IE-Integral-Earth-Cable-Gland-Steel-Wire-Armoured-Cable

CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

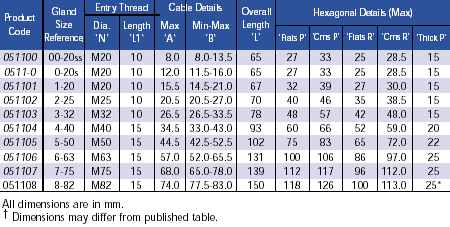

Technical Data
Type - CW IE (Integral Earth)
Gland Material - Brass (Nickel Plated)
Seal Material - Thermoplastic Elastomer
Cable Type - Steel Wire Armoured
Sealing Area - Inner and outer sheath
Optional Accessories - Locknut, Shroud, Adaptor / Reducer

Download Data Sheet
