CCG D1EX EExde IIC Captive Component Gland MAC - Multi Armour Cone For use indoors and hazardous areas

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC armoured

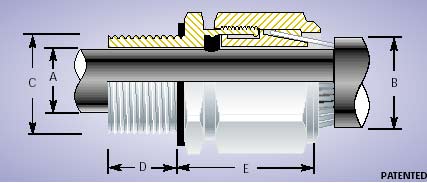

D1EX EExde IIC Captive Component Gland MAC - Multi Armour Cone For use indoors and hazardous areas

CCG D1EX EExde IIC Captive Component Gland MAC - Multi Armour Cone For use indoors and hazardous areas.

Features and Benefits

• For use indoors and hazardous areas.
• Two piece handling, no loose parts.
• Freely rotating captive cone, providing an armour clamp and earth bond without twisting the armour wires.
• Factory fitted captive elastomeric seals for built-in safety.
• Seals on the inner sheath of the cable.
• Manufactured from high quality brass, nickel plated and stainless steel.
• Complete with polypropylene sealing gasket.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

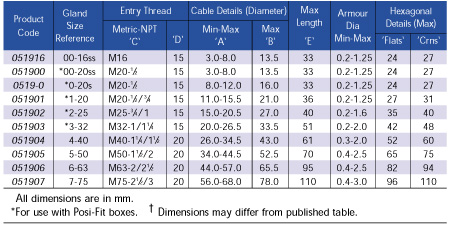

Technical Data
Type - D1EX
Gland Material - Brass (Nickel Plated), Stainless Steel
Seal Material- Thermoplastic Elastomer (Silicone on request)
Cable Type - Steel Wire, Braid, Tape Armour
Armour Clamping - Multi Armour Cone and Cone Ring
Sealing Area - Inner sheath
Optional Accessories - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
