CCG E1EX EExde IIC Captive Component Cable Gland MAC - Multi Armour Cone For use outdoors and hazardous areas (E1W Type)

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC armoured

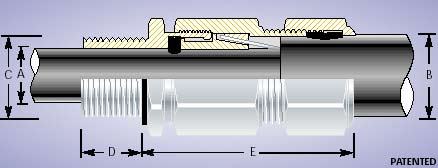

CCG E1EX EExde IIC Captive Component Cable Gland MAC - Multi Armour Cone For use outdoors and hazardous areas (E1W Type)

CCG E1EX EExde IIC Captive Component Cable Gland MAC - Multi Armour Cone For use outdoors and hazardous areas (E1W Type).

Features and Benefits

• For use outdoors and in hazardous areas. (E1W type)
• Two piece handling, no loose parts.
• Multi Armour captive cone, providing an armour clamp and earth bond for Steel wire, Braid and Tape armoured cable.
• No need to reverse cones or cone rings or change seals to accommodate different armour cable.
• Patented disconnect system that allows inspection of armour clamp and inner seal after assembly.
• Factory fitted captive elastomeric seals for built in safety.
• Seals on both inner and outer sheaths to IP66/68.
• Precision manufactured from high quality brass and nickel plated.
• Complete with a polypropylene gasket.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

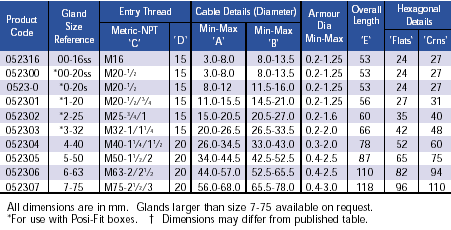

Technical Data
Type - E1EX
Gland Material - Brass (Nickel Plated)
Seal Material - Thermoplastic Elastomer (silicone on request)
Cable Type - Steel wire, Braid, Tape Armour
Armour Clamping - Multi Armour Cone and Cone Ring
Sealing Area - Inner and outer sheath
Optional Accessories & Tools - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
