CCG E1W Captive Component Cable Gland for Steel Wire Armoured Cable For outdoor use

Navigate to: CCG Home | CCG Industrial/Mining Cable Glands
CCG Unarmoured Cable Glands
CCG E1W Captive Component Cable Gland for Steel Wire Armoured Cable

CCG E1W Captive Component Cable Gland for Steel Wire Armoured Cable
For outdoor use .

Features and Benefits

• For use outdoors.
• Two piece handling, no loose parts.
• Freely rotating captive cone, providing an armour clamp and earth bond
without twisting the armouring.
• Factory fitted captive elastomeric seals for built in safety.
• Seals on both inner and outer sheaths to IP66/68.
• Precision manufactured from high quality brass and nickel plated.
• Complete with a brass locknut and polypropylene gasket.
• Available in aluminium on request.

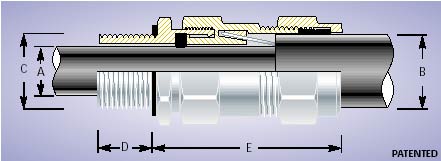

CCG-E1W-Captive-Component-Cable-Gland-Steel-Wire-Armoured-Cable

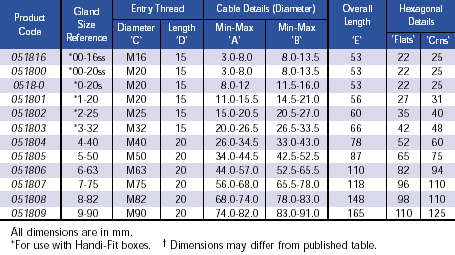

CCG-E1W-Captive-Component-Cable-Gland-Steel-Wire-Armoured-Cable

CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

Technical Data
Type - E1W
Gland Material - Brass (Nickel Plated), Aluminium
Seal Material - Thermoplastic Elastomer (Silicone on request)
Cable Type - Steel Wire Armour
Armour Clamping - Captive Rotating Cone and Cone Ring
Sealing Area - Inner and outer sheath
Optional Accessories - Locknut, Shroud, Earth Tag, Adaptor / Reducer

Download Data Sheet
