CCG HWPL High Voltage Cable Gland for use with PILC cable For use in hazardous areas.
Features and Benefits
• For terminating PILC steel
wire armoured cable 6.6kV to
11kV.
• Mechanically fitted lead seal,
seals on the lead sheath of
cable without the need for
solder, heating or sweating.
• Safe and simple to use in
hazardous areas where a fire
risk occurs.
• Steel wire armouring clamped
with cone and rotating cone
ring.
• Outer seal seals to IP66.
• External earth stud provided.
• Contact CCG for more specific
details.
CCG reserves the right to make
alterations to the technical
data, dimensions, designs and
products available without
notice. The illustrations cannot
be considered binding. Please
contact CGG for assistance.

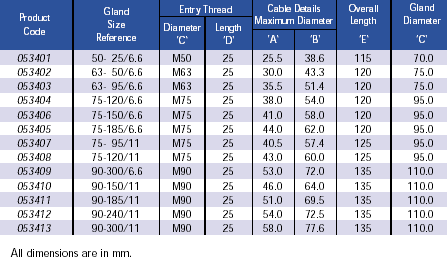

Technical Data
Type - HWPL
Gland Material - Brass (NickelPlated)
Seal Material - Thermoplastic
Elastomer and Lead
Cable Type - Steel Wire Armour
Armour Clamping - Cone and Cone
Ring
Sealing Area - Inner Lead sheath
and outer sheath
