CCG IPLus Corrosion Guard Captive Component Cable Gland for Steel Wire Armoured Cable For use in highly corrosive or wet environments

Navigate to: CCG Home | CCG Industrial/Mining Cable Glands
CCG Armoured Cable Glands
CCG-IPLus-Corrosion-Guard-CaptiveComponent-Cable-Gland-Steel-Wire-Armoured-Cable

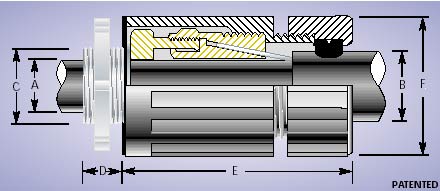

CCG IPLus Corrosion Guard Captive Component Cable Gland for Steel Wire Armoured Cable - For use in highly corrosive or wet environments

Features and Benefits
For use in highly corrosive or wet locations.
Cable gland manufactured from high quality brass and nickel plated.
The screw-on Corrosion Guard is manufactured from non-corrosive material
to protect the steel wire armour and metal parts of the gland.
Corrosion Guard screws onto the gland body and seals over the outer sheath
of the cable giving an IP 68 seal.
Complete with a brass locknut and polypropylene gasket.




CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

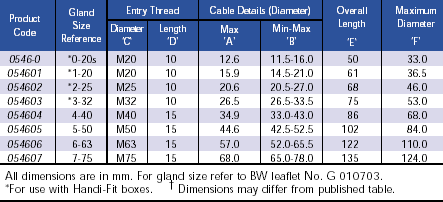

Technical Data
Type - IPLus Corrosion Guard
Gland Material - Brass (Nickel Plated)
Corrossion Guard Material - Glass Reinforced Polyester Compound/PBT
Seal Material - Thermoplastic Elastomer
Cable Type - Steel Wire Armour
Armour Clamping - Captive Rotating Cone
Sealing Area - Outer sheath and total enclosure of gland
Optional Accessories - Locknut

Download Data Sheet
