 Differing
Entry Threads
Because electric apparatus could
originate from foreign
countries, various threads are
encountered. It is therefore
necessary to fit such threads
with the appropriate adaptor.
Although glands can be
manufactured with special
threads, it still leads to the
problem that if the gland is
replaced later the problem with
the original foreign thread
entry remains. An adaptor,
however, can stay permanently in
place.
PG
Threads (DIN German Standard)
Equipment originating in
Germany, Switzerland and most
European countries are supplied
with a PG thread.
The letters PG stand for ‘‘Panzerrohr
Gewinde’’.
NPT threads National Pipe Taper
(USA)
Since the sizes 1/2" NPT-3/4"
NPT-1" NPT are close to I.S.O.
metric threads, it is very easy
to mistake them as such. An
interface between NPT and metric
will, however, not form a
flameproof path and fitting a
gland direct could lead to
disaster.

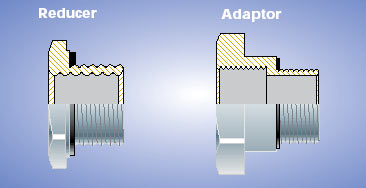

CCG Thread Reducers / Adaptors
Code Structuring for Reducers
and Adaptors
1st character denotes the type,
R - reducer or A - adaptor
2nd character denotes the male
thread - metric, NPT, BSP or PG
3rd character denotes the size
of male thread
4th to 6th character denotes the
female thread - metric, NPT, BSP
or PG
7th to 9th character denotes the
size of female thread
10th character denotes the
classification - Standard or EX
| Type |
Thread |
Size |
Classification |
| R - Reducer |
M - Metric |
Indicated by 3 |
S - Standard |
| A - Adaptor |
N - NPT |
Numeric characters |
E - EX |
| |
B - BSP |
|
|
| |
P - PG |
|
|
| Example of Adaptor and Reducer coding |
| Code |
Description |
| AM016M020E |
M16M-M20F Adaptor EX |
| RM020M016E |
M20M-M16F Reducer EX |
| AM050P042S |
M50M-PG42F Adaptor STD |
CCG PG, NPT, Metric
Reducers/Adaptors Selection
Table
Download PG, NPT, Metric
Reducers/Adaptors Selection
Table

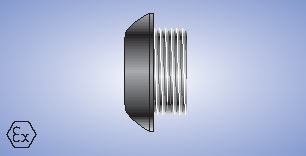

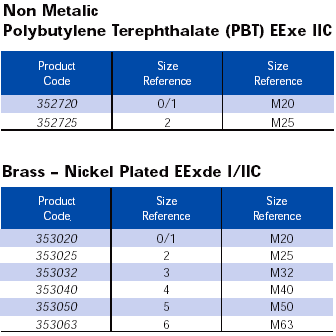

CCG Metric Blanking Plugs
CCG reserves the right to make
alterations to the technical
data, dimensions, designs and
products available without
notice. The illustrations cannot
be considered binding. Please
contact
us for assistance.
Download Data Sheet |
|
