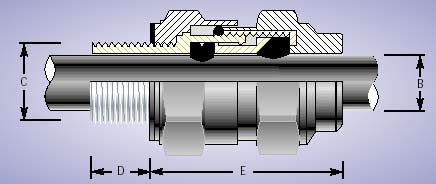

CCG Posi Grip EExe Compression Gland for flexible cable For use in highly corrosive and hazardous conditions

Navigate to: CCG Home | CCG Hazardous Area Cable Glands
Surface Use Group IIC unarmoured
CCG Posi Grip EExe Compression Gland for flexible cable For use in highly corrosive and hazardous conditions

CCG Posi Grip EExe Compression Gland for flexible cable For use in highly corrosive and hazardous conditions.

Features and Benefits

• For use in highly corrosive and hazardous areas.
• All brass parts encapsulated in a non-corrosive body.
• Complete with a hard gripper seal, deluge proof O-ring and elastomeric inner seal for complete ingress protection IP68.
• Supplied with a polypropylene gasket.





CCG reserves the right to make alterations to the technical data, dimensions, designs and products available without notice. The illustrations cannot be considered binding. Please contact CGG for assistance.

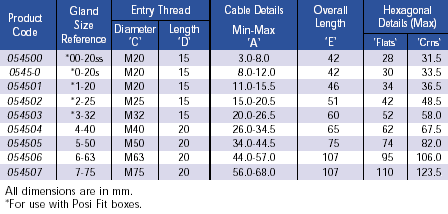

Technical Data
Type - POSIGRIP
Gland Material - Brass encapsulated in Glass Reinforced Polyester/PBT
Seal Material - Thermoplastic Elastomer (silicone on request)
Cable Type - Unarmoured
Sealing Area - Outer sheath
Optional Accessories - Locknut

Download Data Sheet
